● Sine wave output.
● Using lithium iron phosphate battery pack, it can achieve 10000 cycles at 25 ° C.
● You can choose the order of photovoltaic priority, mains priority, and battery priority.
● You can choose between self use power supply or grid fed power supply.
● Expandable battery pack capacity.

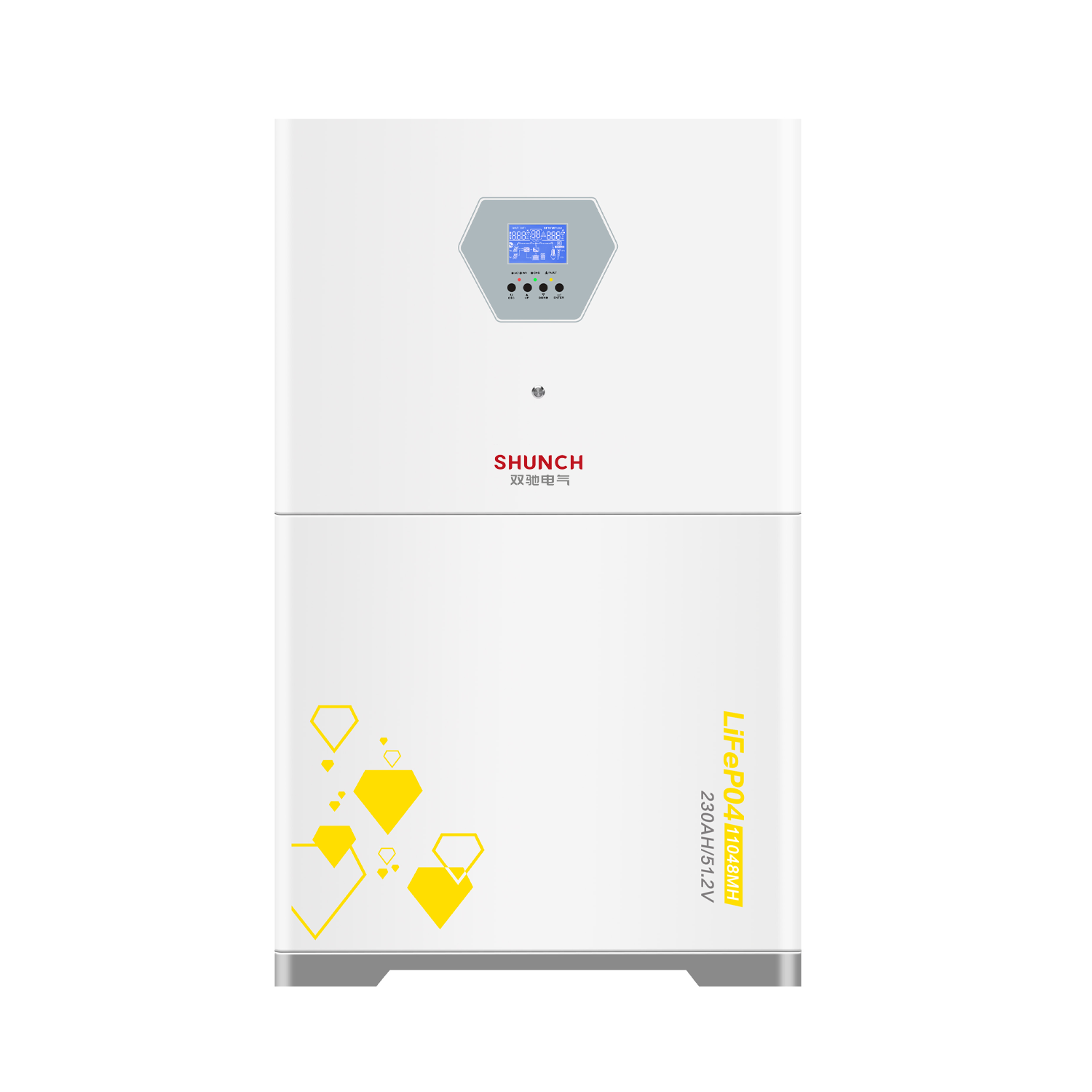

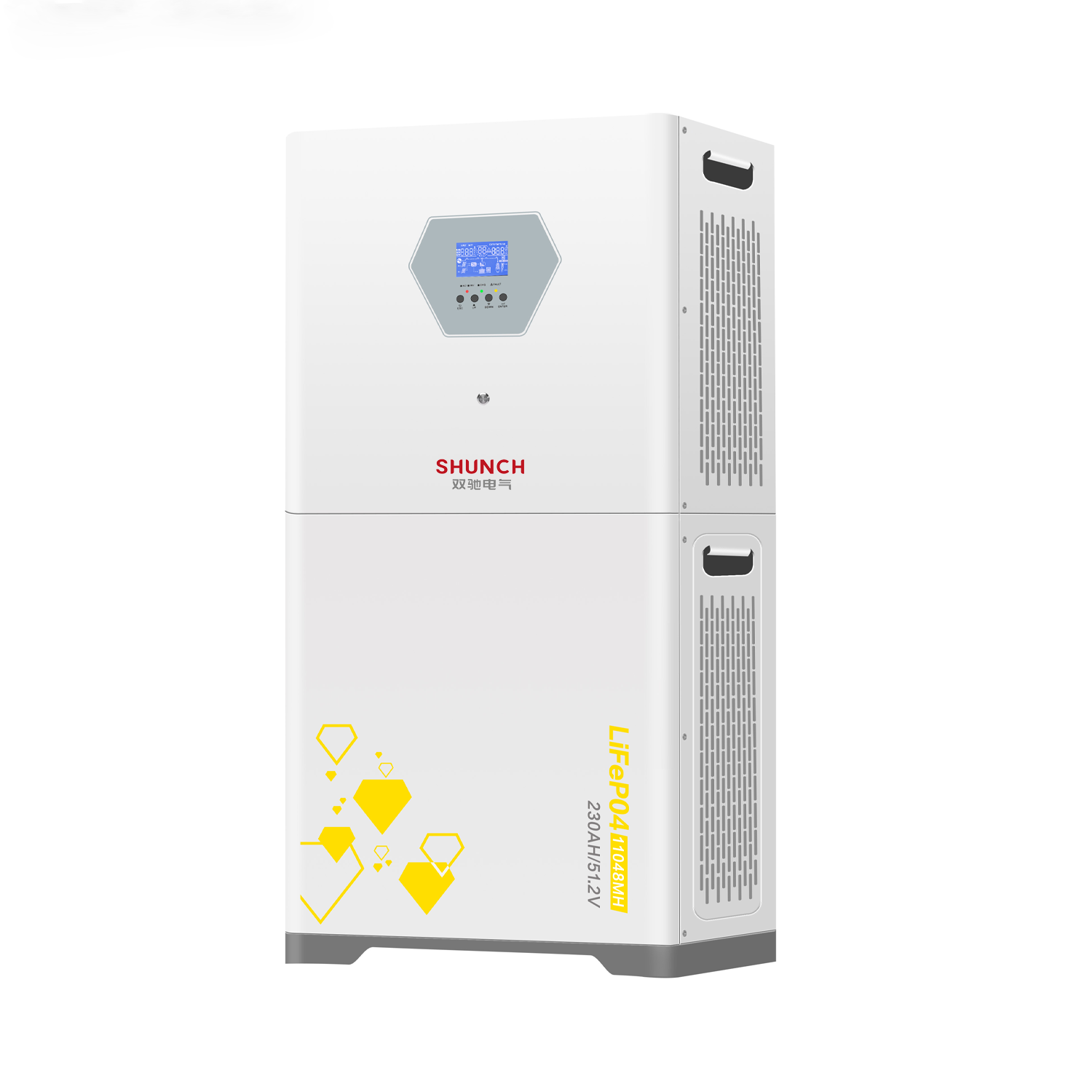

| Inverter model | LD5548JMH | LD11048JMH | |
| Rated power | 5500VA/5500W | 11000VA/11000W | |
| enter | |||
| Voltage | 230VAC | ||
| Voltage range | 170-280VAC (UPS mode) 90-280VAC (Inverter mode) | ||
| Frequency range | 50Hz/60Hz (automatic adaptation) | ||
| Output | |||
| Output voltage | 230VAC±5% | ||
| Peak power | 11000VA | 22000VA | |
| Conversion efficiency (maximum) | 98% | ||
| Output frequency | 50/60Hz±0.1% | ||
| Switch time | 10ms (computer equipment), 30ms (home appliances) | ||
| Output waveform | Sine wave | ||
| No load loss | ＜55W | <80w | |
| Solar charging and mains charging | |||
| Solar charging method | MPPT | ||
| Maximum input power of PV | 5500W | 2×5500W | |
| MPPT input voltage range | 90-500Vdc | ||
| Maximum PV charging current | 100A | 150A | |
| Maximum AC charging current | 60A | 150A | |
| Maximum charging current | 100A | 150A | |
| Physical parameters | |||
| L×W×H (Product size) | 610x170x370 | 630x250x475 | |
| Net weight (NW Kg) | 13 | 23 | |
| Battery model | LN100AH/51.2V | Ln230ah/51.2V | |
| Battery capacity | 5120wh | 11776wh | |
| Battery voltage | 51.2VDC | 51.2VDC | |
| Battery Type | Lithium iron phosphate (LiFePo4) | ||
| Full charge voltage (FC) | 56V | ||
| Full Discharge Voltage (FD) | 42V | ||
| Maximum continuous discharge current | 100A | 200A | |
| Maximum discharge current | 120A (1 minute) | 230A (1 minute) | |
| Protect | BMS, circuit breaker | ||
| Charging voltage | 56V | ||
| Charging current (recommended) | 50A(0.5C) | 115A(0.5C) | |
| Charging current (maximum) | 100A | 200A | |
| L×W×H (Product size) | 610X170x4990 | 630X250X525 | |
| Net weight (NW Kg) | 55 | 110 | |
